 5800 lm Finnlines Hybrid RoRo | KNUD E. HANSEN
  •
Share this page:
PROJECT OVERVIEW
  • VESSEL TYPE: RoRo
  • VESSEL Name: 5800 LM Finnlines Hybrid RoRo
Scope of work
  • Tender and Basic Design
  • Model test assistance
Project specification

Download specification

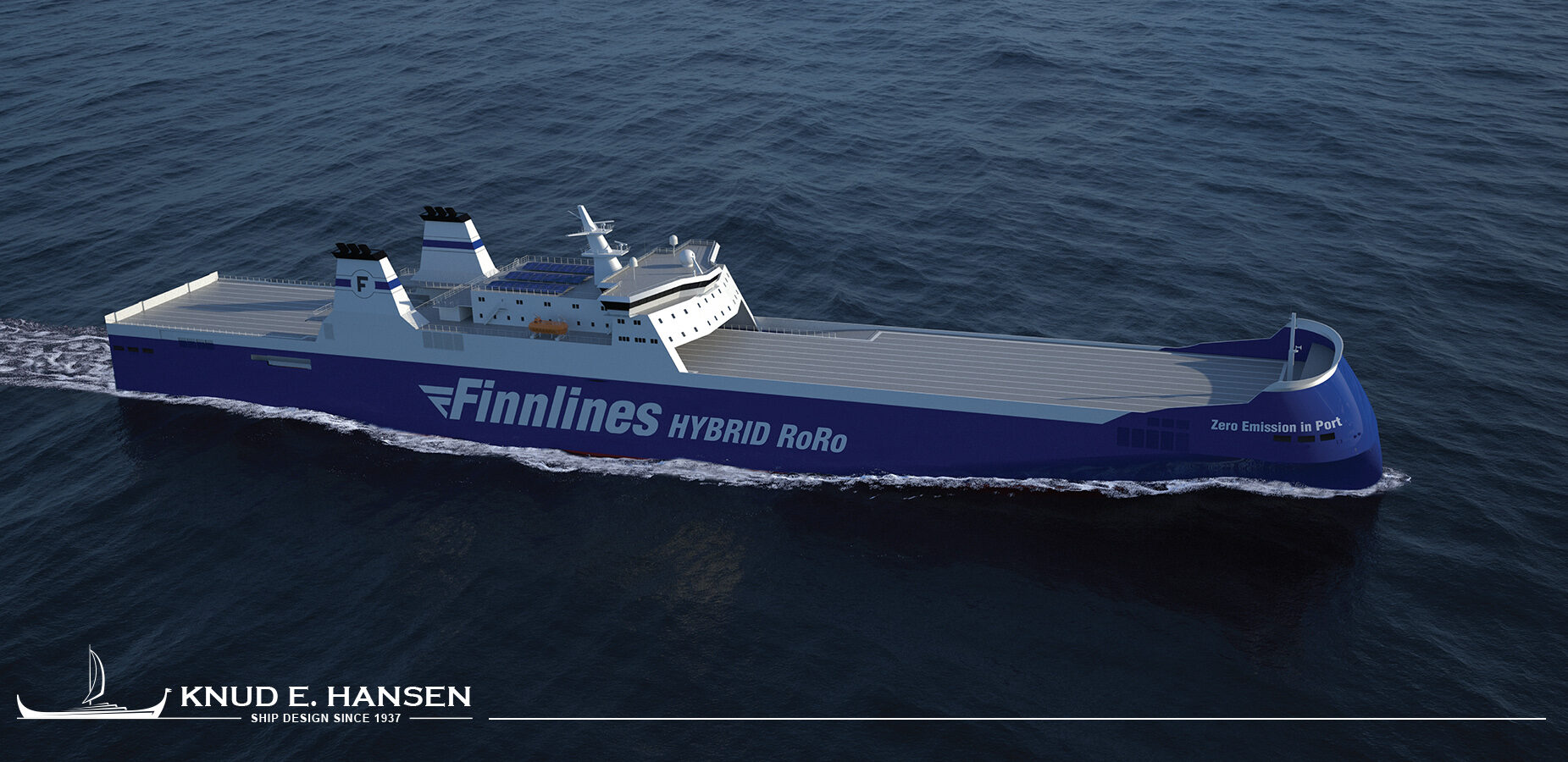

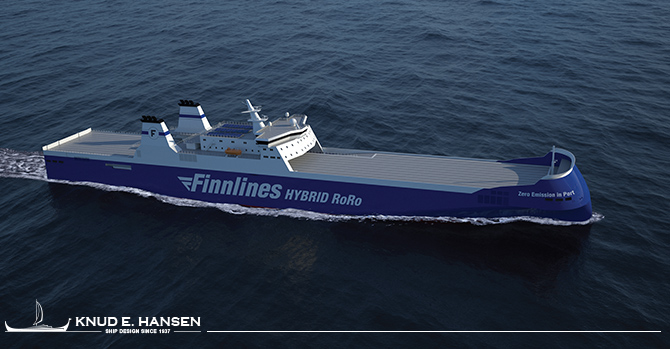

The vessels were ordered by Finnlines in 2018 and to be built at Jinling Shipyard, China. The vessels were based on modified versions of the existing Grimaldi Knud E. Hansen design. The vessels will include innovative features such as large lithium batteries ensuring zero emissions in port, and air lubrication system for reduced water resistance of the hull.

TECHNICAL DATA

Length o.a., approx. 238.00 m
Breadth, moulded 34.00 m
Draught, scantling 7.20 m
Depth to main deck 9.30 m
Deadweight 17,105 t
Crew 26 pers
Passenger 12 pax
Container 300 TEU
Lane meters 5,800 m
